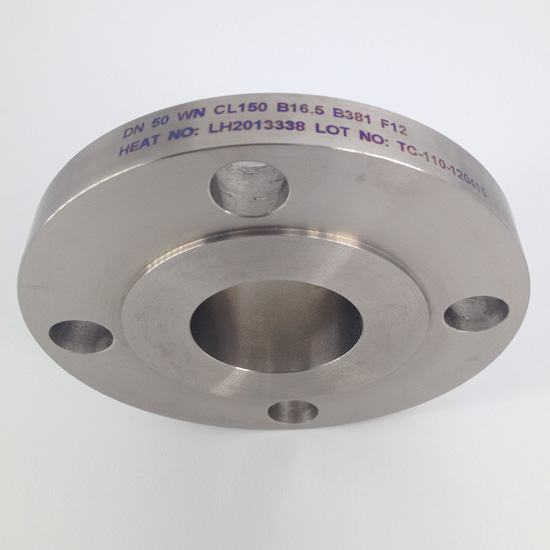

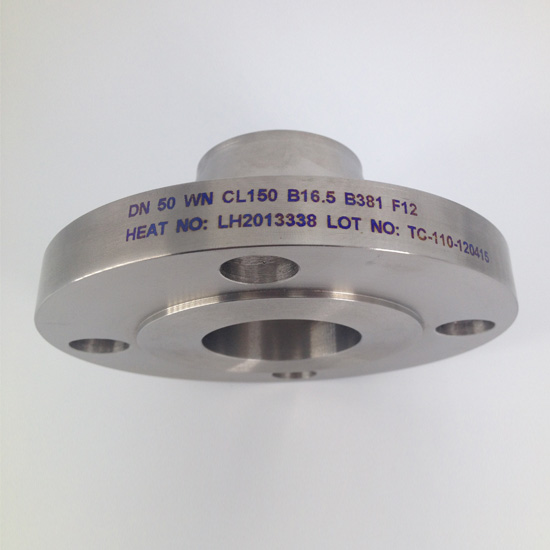

Titanium Flange
|
Material Grade
|
Gr1, Gr1, Gr2, Gr3, Gr4, Gr7,
Gr9, Gr23, TI-6Al4v, Ti6Al4V Eli
|
Certification
|
ISO9001:2008
|
Standard
|
ANSI
B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
|
size
|
1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
|
Pressure Clase
|
PN0.25~32Mpa
|
(DIN)
PN6,PN10,PN16,PN25 though PN250
|
150LB, 250LB ,300LB, 400
LB,500LB, 600 LB,900LB, 1500LB,2500LB
|
Technique
|
Forged and CNC Machined
|
type
|
WN,RF , SO,RF , BLIND ,SW, PL
|
Flange surface
|
FF,RF,TG,RJ etc
|
Application
|
used in cars, glasses,medical equipment , electronics , petrochemical equ
ipment
|
Advantage
|
1. Long service life
|
2. corrosion -resistant
|
3.hign yeiled strenth and tensile strength.
|
2.
Chemical requirements
|
N
|
C
|
H
|
Fe
|
O
|
Al
|
V
|
Pd
|
Mo
|
Ni
|
Ti
|
Gr
|
0.03
|
0.08
|
0.015
|
0.20
|
0.18
|
/
|
/
|
/
|
/
|
/
|
bal
|
Gr 2
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
/
|
/
|
bal
|
Gr 5
|
0.05
|
0.08
|
0.015
|
0.40
|
0.20
|
5.5~6.75
|
3.5~4.5
|
/
|
/
|
/
|
bal
|
Gr 7
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
0.12~0.25
|
/
|
/
|
bal
|
Gr 9
|
0.03
|
0.08
|
0.015
|
0.25
|
0.15
|
2.5~3.5
|
2.0~3.0
|
/
|
/
|
/
|
bal
|
Gr12
|
0.03
|
0.08
|
0.015
|
0.30
|
0.25
|
/
|
/
|
/
|
0.2~0.4
|
0.6~0.9
|
bal
|
3. Tensile
requirements
grade
|
Tensile
strength(min)
|
Yeild
strength(min)
|
Elongation(%)
|
ksi
|
MPa
|
ksi
|
MPa
|
1
|
35
|
240
|
20
|
138
|
24
|
2
|
50
|
345
|
40
|
275
|
20
|
5
|
130
|
895
|
120
|
828
|
10
|
7
|
50
|
345
|
40
|
275
|
20
|
9
|
90
|
620
|
70
|
438
|
15
|
12
|
70
|
438
|
50
|
345
|
18
|
|
